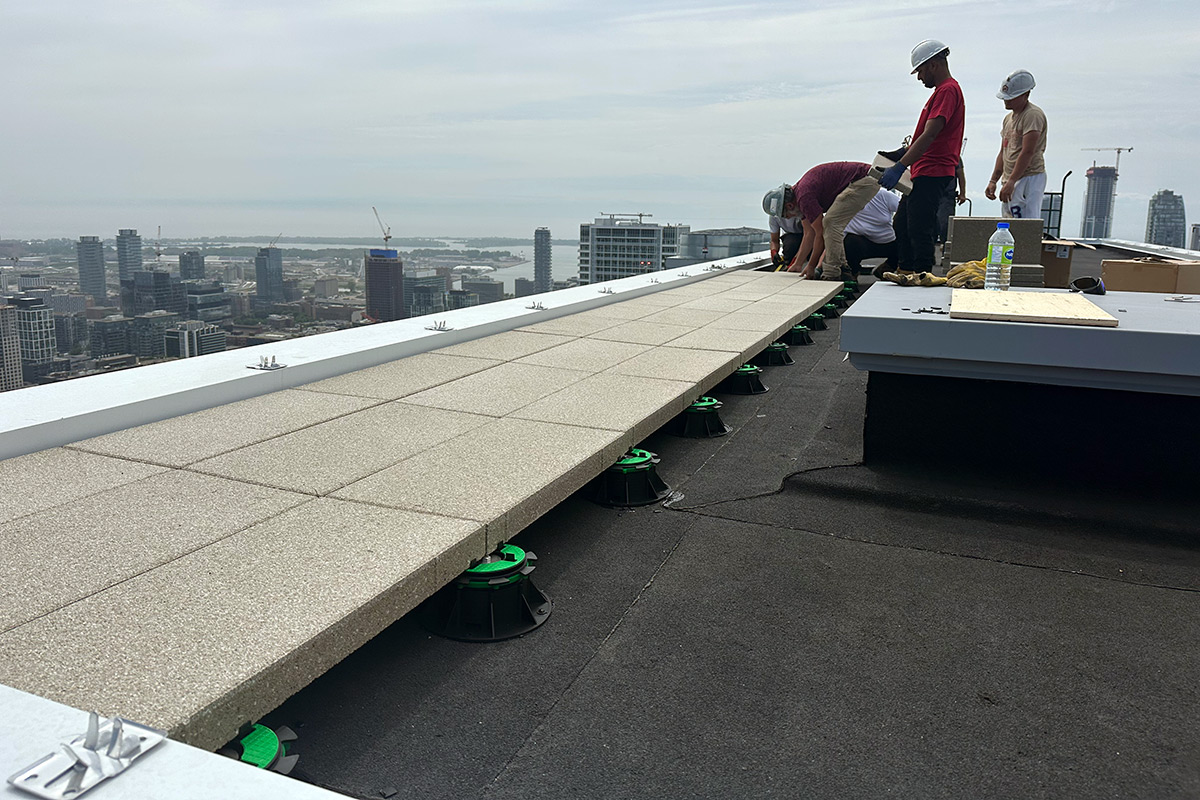

hydroPAVERS® Pedestals Series

Our hydroPAVERS® Pedestals are manufactured and available in various heights allowing for great flexibility of design.

Rotate Screen To View In Landscape To See Pedestal Specificatios

PEDESTAL SPECIFICATIONS

MODEL ADJUSTABLE HEIGHTASSEMBLY PARTS
HAP-02626mm To 40mmSHIM
SPACER TAB
25MM HEAD HEIGHT
20MM BASE HEIGHT
200MM BASE DIA
HAP-03939mm To 65mmSHIM
SPACER TAB
39MM HEAD HEIGHT
34MM BASE HEIGHT
200MM BASE DIA
HAP-06060mm T0 87mmSHIM
SPACER TAB
59MM HEAD HEIGHT
34MM BASE HEIGHT
200MM BASE DIA
HAP-08080mm To 130mmSHIM
SPACER TAB
78MM A-HEAD HEIGHT
FIX COLLAR
65MM BASE HEIGHT
200MM BASE DIA
HAP-130130mm To 175mmSHIM
SPACER TAB
123MM A-HEAD HEIGHT
FIX COLLAR
65MM BASE HEIGHT
200MM BASE DIA
HAP-175175mm To 270mmSHIM
SPACER TAB
78MM A-HEAD HEIGHT
FIX COLLAR
A- EXTENDER
FIX COLLAR
65MM BASE HEIGHT
200MM BASE DIA
HAP-210210mm To 320mmSHIM
SPACER TAB
123MM A-HEAD HEIGHT
FIX COLLAR
A- EXTENDER
FIX COLLAR
65MM BASE HEIGHT
200MM BASE DIA
HAP-300300mm To 460mmSHIM
SPACER TAB
78MM A-HEAD HEIGHT
FIX COLLAR
2 x A- EXTENDER
2 x FIX COLLAR
65MM BASE HEIGHT
200MM BASE DIA
HAP-370370mm To 600mmSHIM
SPACER TAB
78MM A-HEAD HEIGHT
FIX COLLAR
3 x A- EXTENDER
2 x FIX COLLAR
65MM BASE HEIGHT
200MM BASE DIA
Contact us for details.

PEDESTAL - INDIVIDUAL PARTS

PART ID DESCRIPTION OF PART
HAP-FP-12512.5MM STACKABLE FIXED PAVER PEDESTAL
HAP-SS-0/5SLOPED SHIM
0% TO 5% SLOPE
HAP-BP-01BASE PAD
NOISE REDUCTION
HAP-BS-0/5BASE SLOPE CORRECTOR
0% TO 5% SLOPE ADJUSTMENT
HAP-SC-01STEEL CLIP 01
STEEL CLIPS FOR AGAINT THE WALL
HAP-SC-02STEEL CLIP 02
STEEL CLIPS FOR VERTICAL TILES
HAP-SC-03STEEL CLIP 03
STEEL CLIPS FOR VERTICAL TILES

Did You Know

With hydroPAVERS® Adjustable Pedestals, you can design elevated areas as required for your project. Just contact us to discuss.
